Simmons College School of Management & New Main Quad

Click images to enlarge

Slurry Wall Construction

Location: Boston, MA
Owner: Simmons College
Completion Date: November, 2006
General Contractor: Payton Construction Company
Vital Statistics:
Project Value: $9,500,000
Wall Type: 36” Reinforced Concrete Wall
LBEs: 3’ X 9.2’ LBEs (total of 26)
Wall Area: 120,000 S.F.
Max. Excavated Depth: 170’

Description:
The new Simmons College School of Management building occupies a good portion of an existing at grade parking lot. A five level underground parking garage was planned to compensate for the lost parking space and to accommodate the additional space needed because of the new building. East Coast Slurry Company was contracted to install the perimeter slurry wall and 26 LBEs as part of a top down construction sequence. The LBEs penetrated up to 25’ of bedrock, requiring a hydromill to excavate the rock.


image image image image

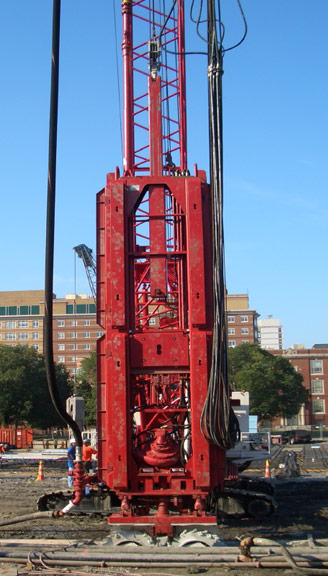

LBE Pretrenching PMill Cutting Rock
for LBEs

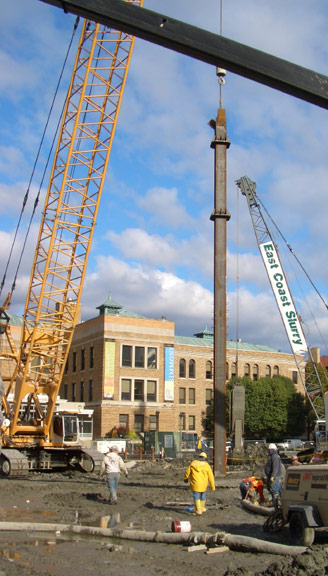

LBE Column
Placement

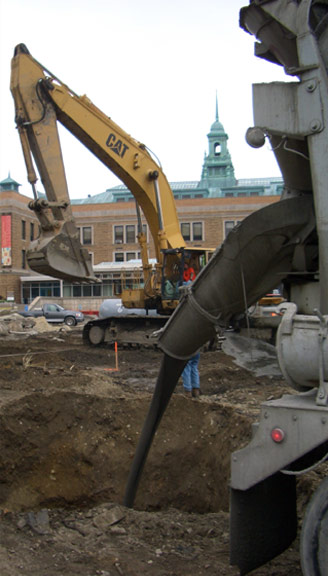

Column Connection
to Reinforce Cage
